Smooth a surface mesh

Smooths a closed triangular surface mesh by repeatedly replacing each vertex with the average of itself and its immediate neighbors (Laplacian/neighbor-averaging smoothing), optionally rescaling the surface back to its original area afterwards.

Usage

mris_smooth(
  mesh,
  niterations = 10L,
  npasses = 1L,
  rescale = FALSE,
  verbose = FALSE
)

Arguments

mesh

triangular mesh of class 'mesh3d'. Must be closed, manifold, and genus-0 (watertight, no boundary or non-manifold edges, single connected component) - the same hard precondition as mris_inflate (and for the same reason: an open or defective mesh introduces a persistent directional bias into the 1-ring averaging). mris_smooth will raise an error if such defects are detected.

niterations

number of include-self 1-ring averaging rounds applied to the vertex positions in each pass. Default 10.

npasses

number of outer smoothing passes. Default 1.

rescale

logical; whether to rescale the surface back to its original area after each pass. Default FALSE.

verbose

logical; print per-pass progress. Default FALSE.

Value

The smoothed surface as a 'mesh3d' object with vb, it, and normals.

Details

For each of npasses passes, the algorithm:

1. Replaces each vertex position by the include-self mean of itself and its 1-ring (directly-connected) neighbors, repeated niterations times.

2. Recomputes vertex normals and total surface area.

3. Optionally rescales the surface back to its original area (only if rescale = TRUE).

Examples

if (is_not_cran()) {

sphere <- vcg_sphere(sub_division = 4L)

# roughen the sphere slightly so smoothing has something to do
sphere$vb[1, ] <- sphere$vb[1, ] * (1 + 0.05 * rnorm(ncol(sphere$vb)))

# Fix defects
sphere <- vcg_fix_defects(sphere)

smoothed <- mris_smooth(sphere, niterations = 5L, verbose = TRUE)

plot_mesh_polygon(
  list(sphere, smoothed),
  alpha = c(0.3, 0.5),
  col = list("gray", "red"),

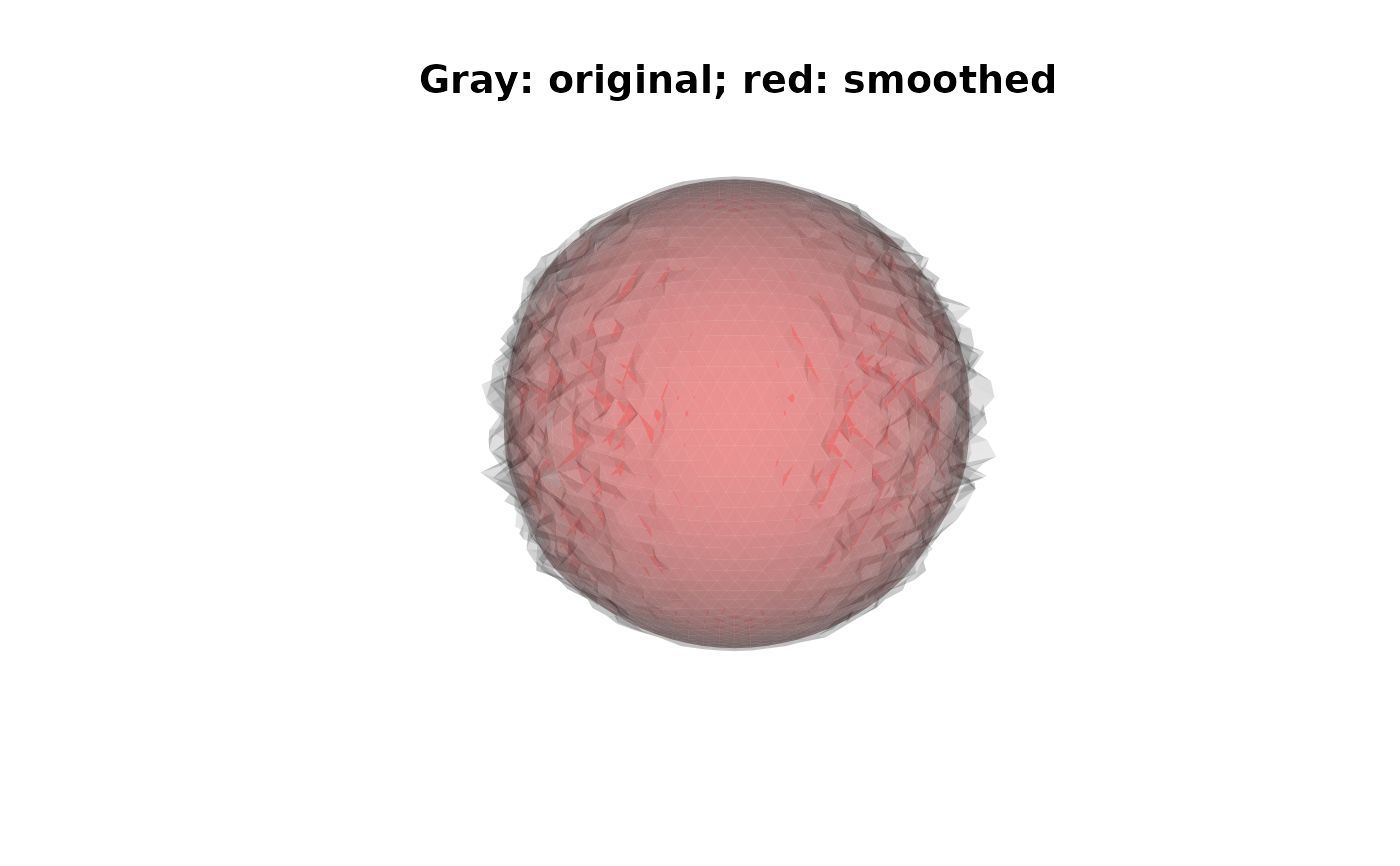

  main = "Gray: original; red: smoothed"
)

}
#> mris_smooth: building adjacency for 2562 vertices, 5120 faces
#> mris_smooth: pass 1/1: averaging vertex positions over 5 iterations
#> mris_smooth: done
