Render one or more meshes as flat-shaded triangles in base R

Projects each triangular face onto a 2D plane using an orthographic camera, shades it with a single color proportional to how directly it faces the camera (Lambert), depth-sorts all faces across all meshes, and draws them in a single polygon call.

Meshes without faces (point clouds) are substituted by a small sphere (vcg_sphere) centered at each point and scaled by cex; they then participate in the same rendering pipeline as ordinary faced meshes.

A camera-facing clipping pass discards triangles whose outward normal points along the camera ray (signed $n \cdot z_{cam}$ $> 1 - \mathrm{mesh\_clipping}$), peeling the front cap off the surface so the back wall (and any interior meshes) become visible. Set mesh_clipping = 1 to disable clipping. Point-cloud meshes (those rendered as substitute vcg_sphere instances) are exempt from this clip so they remain solid even when the enclosing surface is peeled.

Multiple meshes share a single depth space: all faces are projected, sorted, and drawn together so the painter's algorithm works correctly across meshes.

Usage

plot_mesh_polygon(
  mesh,
  eye = c(0, 0, 1000),
  lookat = c(0, 0, 0),
  up = c(0, 1, 0),
  col = c("white", "gray30"),
  cex = 1,
  add = FALSE,
  axes = FALSE,
  asp = 1,
  xlim = NULL,
  ylim = NULL,
  zoom = 1,
  xlab = "",
  ylab = "",
  side = c("front", "back", "both"),
  mesh_clipping = 1,
  sphere_subdivision = 1L,
  alpha = 1,
  shadow_color = NULL,
  light_intensity = 1,
  ambient_intensity = 0.2,
  clipping_plane = NULL,
  clipping_plane_enabled = TRUE,
  ...
)

Arguments

mesh: a 'mesh3d' object, or a list of 'mesh3d' objects. Meshes without a face matrix ($it) are rendered as sphere instances (one vcg_sphere per vertex, radius cex).
eye: numeric vector of length 3 - camera position in world space.
lookat: numeric vector of length 3 - the world-space point the camera is looking at.
up: numeric vector of length 3 - world-space "up" direction; defaults to c(0, 1, 0).
col: base color(s) per mesh. Same forms as plot_mesh_dotcloud: a single color, a depth-gradient vector, a per-vertex character vector, or a list of any of these (one element per mesh). Default c("white", "gray30").
cex: radius of the substitute sphere used for point-cloud meshes (world units). Has no effect on meshes that already have faces. Default 1.
add: logical; if TRUE the faces are added to an existing plot instead of opening a new one. Default FALSE.
axes, asp, xlim, ylim, xlab, ylab: passed to plot.default when add = FALSE.
zoom: positive numeric magnification applied to the auto-computed axis limits when xlim or ylim is NULL. Values greater than 1 zoom in, values in (0, 1) zoom out. When asp is set, the zoom is plot-region aware (queried via par("pin")): the axis that already fills the device after asp-induced expansion is zoomed by exactly zoom, and the other axis is zoomed less so the data fills more of the plot region while preserving the requested asp. Ignored for any axis whose limit was supplied explicitly, and when add = TRUE. Default 1.
side: which side of each triangle to render. One of "front" (default), "back", or "both" (shows all triangles).
mesh_clipping: numeric in [0, 1] controlling camera-facing clipping: any triangle whose signed Lambert dot product ($n \cdot z_{cam}$, i.e. positive for front-facing) is at or above mesh_clipping is discarded. A value of 1 (default) keeps the full surface; 0.5 peels a 60-degree cap off the front and reveals the back wall (whose absolute Lambert shade is still large, so it renders brightly); 0 clips every front-facing triangle and shows the interior only. Back-facing triangles are never clipped by this rule. Default 1.
sphere_subdivision: integer subdivision level forwarded to vcg_sphere when substituting point clouds. Higher values give smoother spheres at the cost of more triangles. Default 1 (80 triangles per sphere).
alpha: numeric in [0, 1]; one value per mesh (recycled), sets the transparency of each mesh (1 = fully opaque, 0 = fully transparent). Faces belonging to a mesh with alpha = 0 are dropped entirely. Because faces are drawn in back-to-front (painter's) order, alpha blending across multiple meshes follows that order. Default 1.
shadow_color: color used for fully unlit (grazing/back) faces. The Lambert shade linearly interpolates from shadow_color (at shade = 0) toward the face color lit by a white light (at shade = 1), so unlit faces fade to this color instead of an implicit black background. Default par("fg"), so the shadow contrasts with the current device's canvas.
light_intensity: non-negative scalar controlling the brightness of the (white) light source: at shade = 1 the face color is multiplied by light_intensity (clamped to [0, 1]). 1 (default) reproduces the face color exactly when fully lit; smaller values darken the whole mesh, larger values saturate.
ambient_intensity: scalar in [0, 1] acting as a lower bound on the Lambert shade so grazing/back faces still receive some light and never collapse fully to shadow_color. An effective shade of max(shade, ambient_intensity) is used in the background-to-light blend. Default 0.2.
clipping_plane: optional list of world-space clipping planes used to hide parts of the scene. Each plane is a numeric vector of length 5: the first three entries are the plane normal $(n_x, n_y, n_z)$ (must be non-zero; normalized internally), the fourth is the signed distance from the world origin to the plane along that normal (so the plane equation is $n \cdot x = d$), and the fifth indicates which half-space is kept: 1 keeps the front side (the side the normal points to), -1 keeps the back side, and 0 keeps whichever side currently faces the camera (auto-flipped per call based on eye). Multiple planes are intersected. Clipping is applied per face using the face centroid (a face is kept only when its centroid lies on the kept side of every plane). A single length-5 numeric vector is also accepted as shorthand for a one-plane list. Default NULL (no clipping).
clipping_plane_enabled: logical vector, one entry per mesh (recycled), controlling whether clipping_plane is applied to that mesh. TRUE (default) means the mesh participates in clipping; FALSE exempts the mesh entirely (all of its faces are kept regardless of the clipping planes). Has no effect when clipping_plane is NULL.
...: additional graphical parameters forwarded to plot.default (new plot only).

Value

Invisibly returns a list with components xlim and ylim (the plot limits used).

Details

Limitations of the base-R polygon path (no rgl):

Flat shading only - one color per triangle. No per-vertex color interpolation.
No depth buffer - faces are depth-sorted by centroid (painter's algorithm). Interpenetrating triangles can render in the wrong order.
Anti-aliasing seams can appear between adjacent triangles on raster devices; Cairo-based devices (png(type = "cairo"), svg(), pdf()) produce cleaner output than the default quartz/X11 path.

Coercing Surface Inputs

The surface objects are converted to 'mesh3d' object before applying further calculations.

When surface is a surface ieegio object, the returned mesh3d$vb contains vertices that have been left-multiplied by surface$geometry$transforms[[1]] (the first transform stored in the geometry, typically the ScannerAnat or voxel-to-world transform).

Breaking change: Earlier versions (before 0.2.6) of ravetools returned the raw surface$geometry$vertices without applying any transform, so downstream code often multiplied by surface$geometry$transforms[[1]] (or an equivalent) manually before working in world space. Such code will now double apply the transform and produce incorrect coordinates. If you previously applied a transform from surface$geometry$transforms by hand after calling a ravetools mesh function on an 'ieegio_surface', remove that manual step.

Surfaces with an empty or missing geometry$transforms list (for example, surfaces produced by ieegio's volume_to_surface, which stores an identity transform) are unaffected.

If geometry$transforms contains multiple transforms targeting different coordinate spaces, only the first one is used. Callers that need a specific target space should select and apply that transform themselves before calling ravetools mesh functions.

Examples


mesh <- vcg_isosurface(left_hippocampus_mask)

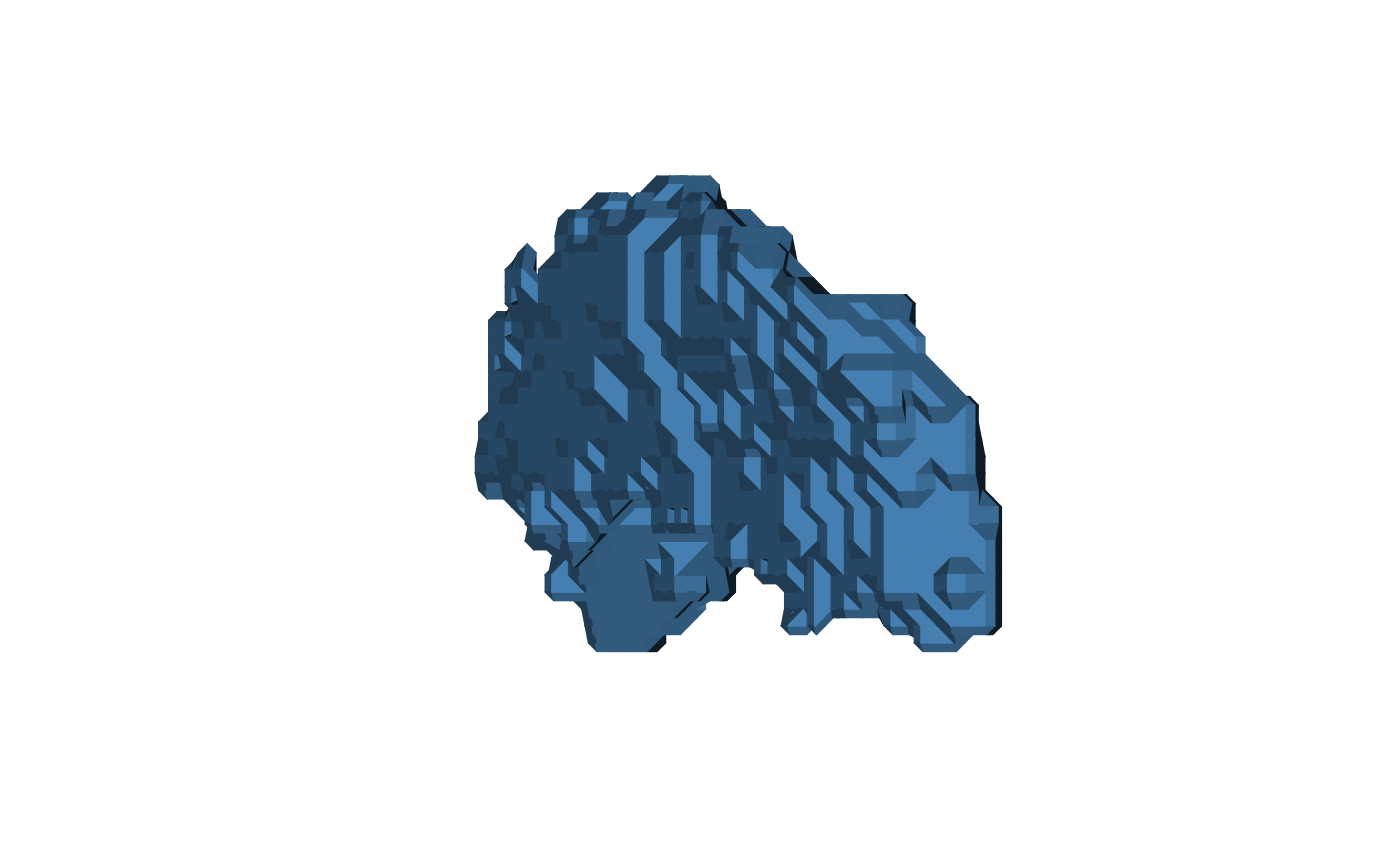

# Surface alone
plot_mesh_polygon(
  mesh,
  eye    = c(150, 30, 0),
  lookat = c(0, 0, 0),
  up     = c(0, 0, 1),
  col    = "steelblue"
)

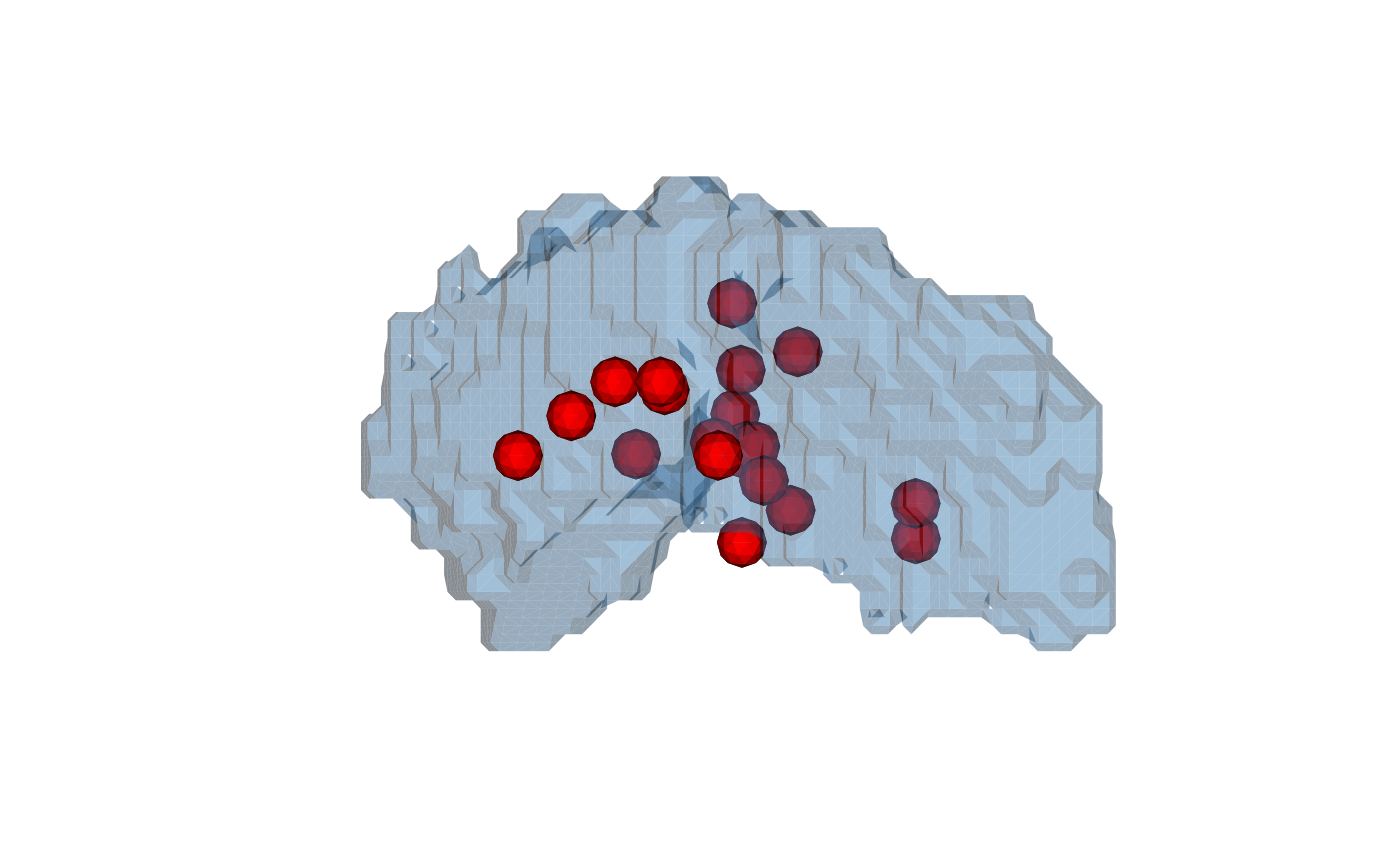

# Surface + electrode point cloud (rendered as small icospheres)
n_elec <- 20
electrodes <- structure(
  list(vb = matrix(rnorm(3 * n_elec, sd = 5), 3, n_elec) +
         rowMeans(mesh$vb)[1:3]),
  class = "mesh3d"
)
plot_mesh_polygon(
  mesh = list(mesh, electrodes),
  eye    = c(150, -30, 0),
  lookat = c(0, 0, 0),
  up     = c(0, 0, 1),
  alpha  = c(0.5, 1),
  col    = list("steelblue", "red"),
  cex    = 1.5
)
