Inflate a cortical surface mesh — mris

Iteratively relaxes a closed cortical-surface mesh into a smoother, more compact "inflated" shape, while tracking how far each vertex moves inward along the surface normal as it goes. Returns both the inflated mesh and this per-vertex depth map (sulc).

Usage

mris_inflate(
  mesh,
  n_averages = 16L,
  niterations = 10L,
  l_spring_norm = 1,
  l_dist = 0.1,
  momentum = 0.9,
  dt = 0.9,
  desired_rms = 0.015,
  scale_brain = TRUE,
  verbose = FALSE
)

Arguments

mesh: triangular mesh of class 'mesh3d', typically a white-matter surface in millimeters. The mesh must be closed, manifold, and genus-0 (watertight, no boundary or non-manifold edges, single connected component) - this is a hard precondition of the underlying algorithm. An open or defective mesh (e.g. a raw surface extracted via vcg_isosurface, which often contains small extraction cracks) will silently inflate into a distorted, "sausage"-shaped result rather than a smooth sphere-like surface, and mris_inflate will raise an error if such defects are detected.
n_averages: starting number of gradient-averaging passes (outer loop); halved each level down to 0. Default 16.
niterations: number of inner iterations per averaging level. Default 10.
l_spring_norm: normalized spring term coefficient. Default 1.0.
l_dist: distance-preservation coefficient (before per-level scaling). Default 0.1.
momentum: momentum coefficient. Default 0.9.
dt: time step. Default 0.9.
desired_rms: target RMS tangent-plane height for early stopping of each inner loop. Default 0.015 (mm).
scale_brain: logical; whether to scale the mesh to the canonical surface area (110,000 \(mm^2\)) before inflation. Set FALSE only for non-standard inputs. Default TRUE.
verbose: logical; print per-iteration progress. Default FALSE.

Value

A named list:

mesh: Inflated surface as a 'mesh3d' object with vb, it, and normals.
sulc: Numeric vector of the per-vertex depth values described above (zero-mean, in mesh units).

Details

The implementation follows the inflation procedure described in the literature (see References):

Optionally rescale the mesh to a canonical surface area (110,000 \(mm^2\), the normalization target used by the reference procedure).
Outer loop: a neighborhood-averaging size n_averages is halved at each level (16, 8, ..., 0).
Inner loop (niterations repetitions per level):
Distance term

Restoring force pulling each vertex back towards its original distances to its neighbors, with coefficient l_dist * sqrt(n_averages).

Gradient averaging

Smooth the distance-term gradient over n_averages neighborhood passes before adding the spring term.

Normalized spring term

Laplacian (neighbor-averaging) smoothing scaled by sqrt(orig_area / current_area), with coefficient l_spring_norm; added after gradient averaging.

Momentum step

Update vertex positions using momentum integration with a 1 mm per-step displacement cap.

Depth accumulation

Accumulate the normal-projected component of each step into the per-vertex depth map (sulc).
Center the mesh, rescale it, and zero-mean the depth map (sulc).

References

Cortical surface-based analysis II: Inflation, flattening, and a surface-based coordinate system. NeuroImage, 9(2), 195-207 (1999).

Examples

if (is_not_cran()) {


data("left_hippocampus_mask")
mesh <- vcg_isosurface(left_hippocampus_mask)

# Fix defects
mesh <- vcg_fix_defects(mesh, verbose = TRUE)

# Center the mesh
mesh$vb[1:3, ] <- mesh$vb[1:3, ] - rowMeans(mesh$vb[1:3, ])

# Inflate the surface while keeping the node distances
result <- mris_inflate(mesh, n_averages = 4L, niterations = 5L,
                       scale_brain = FALSE, verbose = TRUE)

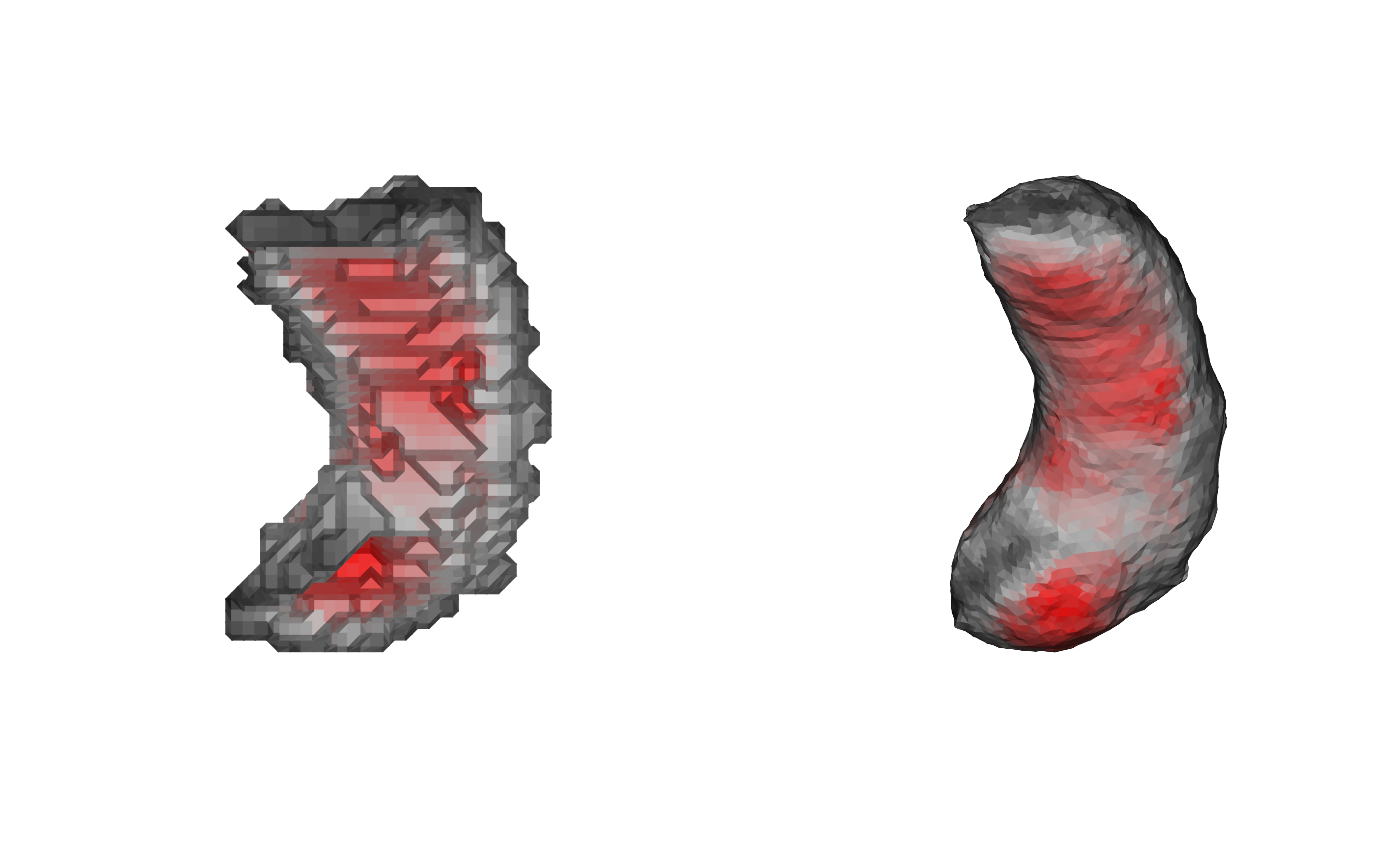

# Visualize with the sulcal values
pal <- colorRampPalette(c("black", "gray", "red"))(128)
col <- pal[pmax(pmin(round(result$sulc * 10 + 64), 128), 1)]

oldpar <- par(mfrow = c(1, 2))
on.exit({ par(oldpar) })

plot(
  mesh, col = col,
  eye = c(0, 100, 0),
  up = c(1, 0, 0))

plot(
  result$mesh, col = col,
  eye = c(0, 100, 0),
  up = c(1, 0, 0))


}
#> vcgFixDefects: input nv=4318 nf=8652, boundary edges=40, non-manifold edges=0
#> vcgFixDefects: [1] removed degenerate/duplicate faces -> nv=4318 nf=8652
#> vcgFixDefects: [2] merged 0 close vertices -> nv=4318 nf=8652
#> vcgFixDefects: [3a] topology/normals ready, starting hole fill (max_hole_size=100)
#> vcgFixDefects: [3b] filled 10 hole(s) -> nv=4318 nf=8672
#> vcgFixDefects: [4] removed unreferenced vertices -> nv=4318 nf=8672
#> vcgFixDefects: [5a] topology rebuilt, orienting coherently
#> vcgFixDefects: [5b] oriented=1 orientable=1
#> vcgFixDefects: removed/merged 0 vertices (tol=9.97168e-05), filled 10 hole(s)
#> vcgFixDefects: output nv=4318 nf=8672, boundary edges=0, non-manifold edges=0, oriented=yes, orientable=yes, normals_flipped_outward=no
#> mris_inflate: building adjacency for 4318 vertices, 8672 faces
#> mris_inflate: computing original distances
#> mris_inflate: starting inflation, initial RMS=0.1937 (target=0.0150)
#>   iter   5 (navg= 4, ldist=0.200): RMS=0.14109
#>   iter  10 (navg= 2, ldist=0.141): RMS=0.10396
#>   iter  15 (navg= 1, ldist=0.100): RMS=0.08010
#>   iter  20 (navg= 0, ldist=0.000): RMS=0.06292
#> mris_inflate: done (20 total iterations)
