Project a surface onto a sphere and relax metric distortion

Projects a closed triangular surface mesh radially onto a sphere and then iteratively relaxes the metric distortion this introduces ("unfolding"), so that geodesic distances and face orientations stay close to those of the input surface - a step typically used to prepare an inflated cortical surface for spherical registration.

Usage

mris_sphere(
  mesh,
  target_radius = 100,
  n_averages = 64L,
  niterations = 25L,
  l_dist = 1,
  l_area = 1,
  momentum = 0.9,
  dt = 0.05,
  verbose = FALSE
)

Arguments

mesh: triangular mesh of class 'mesh3d', typically an inflated surface (see mris_inflate). Must be closed, manifold, and genus-0 - the same hard precondition as mris_inflate. mris_sphere will raise an error if such defects are detected.
target_radius: radius of the target sphere. Default 100.
n_averages: number of gradient-averaging passes applied to the distance-term gradient each iteration (the same neighborhood-averaging mechanism mris_inflate uses). Default 64; reduced from the much larger averaging size used in production pipelines (tuned for cortical surfaces with hundreds of thousands of vertices) to a size more practical for typical 'mesh3d' inputs.
niterations: number of unfolding iterations. Default 25.
l_dist: distance-preservation coefficient. Default 1.0.
l_area: folded-face repulsion coefficient. Default 1.0.
momentum: momentum coefficient. Default 0.9.
dt: time step. Default 0.05.
verbose: logical; print per-iteration progress. Default FALSE.

Value

The projected and relaxed surface as a 'mesh3d' object with vb, it, and normals.

Details

This is a reduced procedure, not a complete reproduction of any particular reference implementation. The full unfolding procedure described in the literature integrates seven weighted energy terms against a separate reference surface through a multi-resolution, multi-thousand line optimization pipeline, which is out of scope for this package. Instead, this implementation keeps the two dominant terms and integrates them with the same momentum-based machinery mris_inflate uses:

Distance term (l_dist): Restoring force pulling each vertex back towards the input mesh's own original distances to its neighbors.
Area term (l_area): Repulsive force that acts only on folded/negative-area faces, pushing their vertices apart - this is the actual "unfolding" mechanism.

Both terms are integrated via momentum integration with gradient averaging and a 1 mm per-step displacement cap, exactly as mris_inflate does.

A further simplification: the reference procedure relaxes a freshly spherical-projected surface against a separate, previously-loaded white-matter reference surface for the distance term; since this function takes a single mesh as input, the input mesh's own metric (captured before projection) is used as the reference instead - the same convention mris_inflate already uses, and the practical analogue (the white-matter surface is normally what gets inflated to produce a typical input to this kind of unfolding step).

Examples

if (is_not_cran()) {

sphere <- vcg_sphere(sub_division = 3L)

# deform so there is metric distortion to relax
sphere$vb[1, ] <- sphere$vb[1, ] * (1 + 0.2 * rnorm(ncol(sphere$vb)))

# Fix defects
sphere <- vcg_fix_defects(sphere)

result <- mris_sphere(
  sphere,
  n_averages = 8L,
  niterations = 10L,
  target_radius = 1,
  verbose = TRUE
)

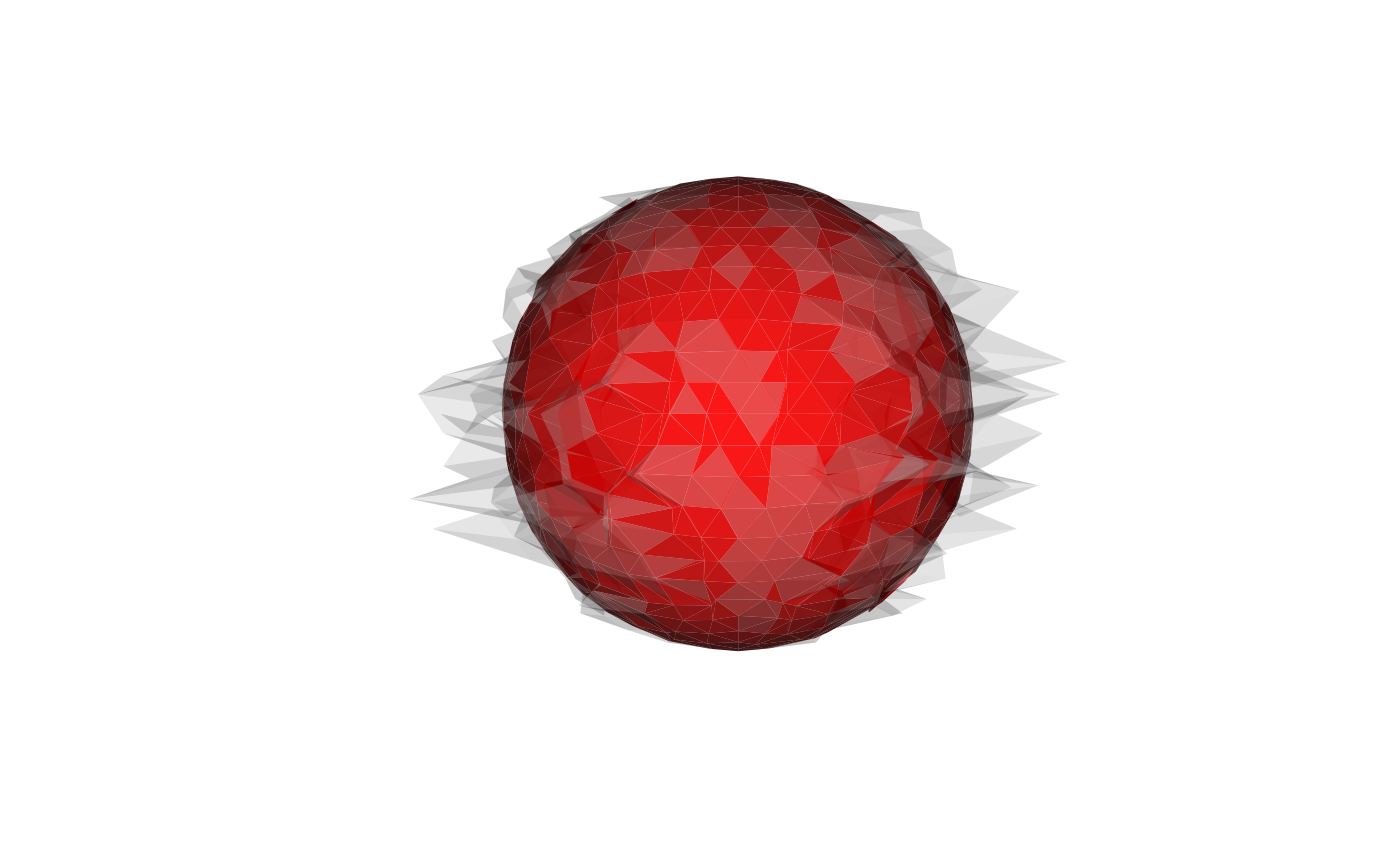

plot_mesh_polygon(list(sphere, result),
                  col = list("gray", "red"),
                  alpha = c(0.3, 0.9))



}
#> mris_sphere: building adjacency for 642 vertices, 1280 faces
#> mris_sphere: projecting onto sphere of radius 1.00
#> mris_sphere: starting unfolding, initial neg_area=0.4999 (total_area=12.9821)
#>   iter   5: neg_area=0.53725 (total_area=13.0182)
#>   iter  10: neg_area=0.61820 (total_area=13.0965)
#> mris_sphere: done (10 iterations)
