Localize white-matter and pial surfaces from an intensity volume

Starting from a single closed surface mesh (typically a smoothed estimate of the white-matter boundary, in the same physical coordinate space as volume) and a co-registered intensity volume (such as a normalized T1 scan), iteratively deforms the surface in two passes to localize the white/gray-matter and gray-matter/CSF tissue-intensity boundaries, producing a white and a pial surface.

Usage

mris_make_surfaces(
  mesh,
  volume,
  white_intensity,
  pial_intensity,
  IJK2RAS = NULL,
  max_thickness = 5,
  step_size = 0.4,
  n_averages = 4L,
  niterations = 10L,
  l_intensity = 1,
  l_spring = 0.5,
  momentum = 0.9,
  dt = 0.5,
  verbose = FALSE
)

Arguments

mesh: triangular mesh of class 'mesh3d' (or coercible via ensure_mesh3d), in the same physical (RAS) coordinate space as volume. As with mris_inflate, the mesh must be closed, manifold, and genus-0 (watertight, no boundary or non-manifold edges, single connected component); mris_make_surfaces raises an error if such defects are detected
volume: a 3-dimensional numeric array of image intensities (such as a normalized T1 volume), co-registered with mesh
white_intensity: target intensity for the white/gray-matter boundary; the value the white-surface pass searches for along each vertex normal. For a normalized T1 volume this is typically close to the midpoint between the white-matter and gray-matter intensities
pial_intensity: target intensity for the gray-matter/CSF boundary, analogous to white_intensity for the pial-surface pass
IJK2RAS: volume IJK (zero-indexed voxel index) to surface tkrRAS transform (a 4x4 matrix); default is NULL, which assumes volume is a conformed volume (LIA orientation, 1mm isotropic 'voxels', centered at the volume midpoint, the same convention fill_surface defaults to) and derives the transform from dim(volume); set this explicitly when volume uses a different orientation or voxel size
max_thickness: half-width, in mm, of the per-vertex normal search window the intensity-target term samples. Default 5
step_size: sampling step, in mm, along the search window. Default 0.4
n_averages: number of 1-ring gradient-averaging passes applied to the intensity-target gradient before the smoothness term is added (mirrors mris_inflate's gradient-averaging step). Default 4
niterations: number of deformation iterations per pass (white, then pial). Default 10
l_intensity: intensity-target term coefficient. Default 1.0
l_spring: smoothness (1-ring Laplacian spring) term coefficient. Default 0.5
momentum: momentum coefficient. Default 0.9
dt: time step. Default 0.5
verbose: logical; print per-pass progress. Default FALSE

Value

A named list of two 'mesh3d' surfaces (each with vb, it, and normals):

white: Surface localized to white_intensity.
pial: Surface localized to pial_intensity, continuing from white.

Details

The implementation keeps the two dominant ideas of the surface-placement procedure described in the literature (see References):

Intensity-target localization: for each vertex, sample volume along the vertex's current normal at offsets spanning \(\pm\)max_thickness in steps of step_size, and pull the vertex toward the offset whose sampled intensity is closest to a single target value (white_intensity for the white-surface pass, pial_intensity for the pial-surface pass).
Smoothness: a 1-ring Laplacian spring keeps the mesh regular while the per-vertex intensity term, which reacts independently to noisy image data, pulls vertices toward the tissue boundary.

Both terms are integrated with the same gradient-averaging and momentum-integration machinery mris_inflate and mris_sphere use: each inner iteration clears the gradient, adds the intensity-target term, smooths it over n_averages passes of 1-ring averaging, adds the locally-acting smoothness term (which is not itself smoothed), then takes a momentum-integration step with a 1 mm per-step displacement cap, and refreshes the vertex normals.

The white-surface pass runs first, for niterations iterations; the pial-surface pass then continues from its result, with the momentum velocity reset to rest, toward pial_intensity for another niterations iterations.

This is a reduced port: the literature's procedure is a multi-resolution optimization over roughly seven weighted energy terms (intensity, intensity gradient, smoothness, self-intersection repulsion, curvature, and more), using per-vertex gray/white/CSF intensity statistics derived from a prior segmentation. Reproducing that faithfully is out of scope for this package; white_intensity and pial_intensity are supplied directly here instead, for example the midpoints between the typical white-matter/gray-matter and gray-matter/CSF intensities of volume.

References

Cortical surface-based analysis I: Segmentation and surface reconstruction. NeuroImage, 9(2), 179-194 (1999).

Examples


if (is_not_cran()) {


data("left_hippocampus_mask")
n_vox <- length(left_hippocampus_mask)

volume <- left_hippocampus_mask + runif(n = n_vox, 0, 1)
vox2ras <- diag(1, 4)
mesh <- vcg_isosurface(volume, threshold_lb = 0.99)

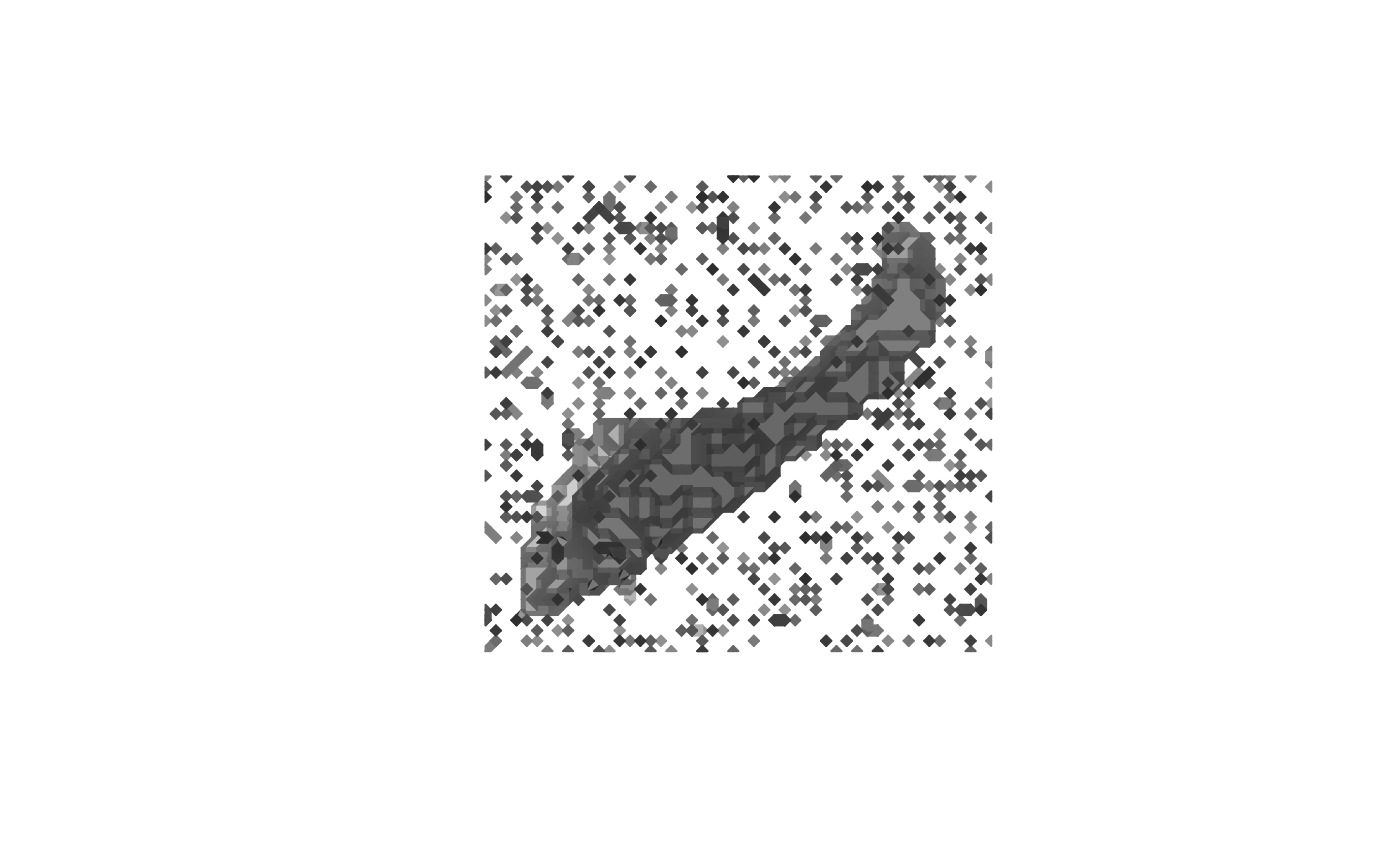

plot(mesh)

# Fix defects
mesh <- vcg_fix_defects(mesh, verbose = TRUE, merge_tolerance = 1.75)


res <- mris_make_surfaces(
  mesh,
  volume,
  pial_intensity = 1.1,
  white_intensity = 1,
  IJK2RAS = vox2ras
)

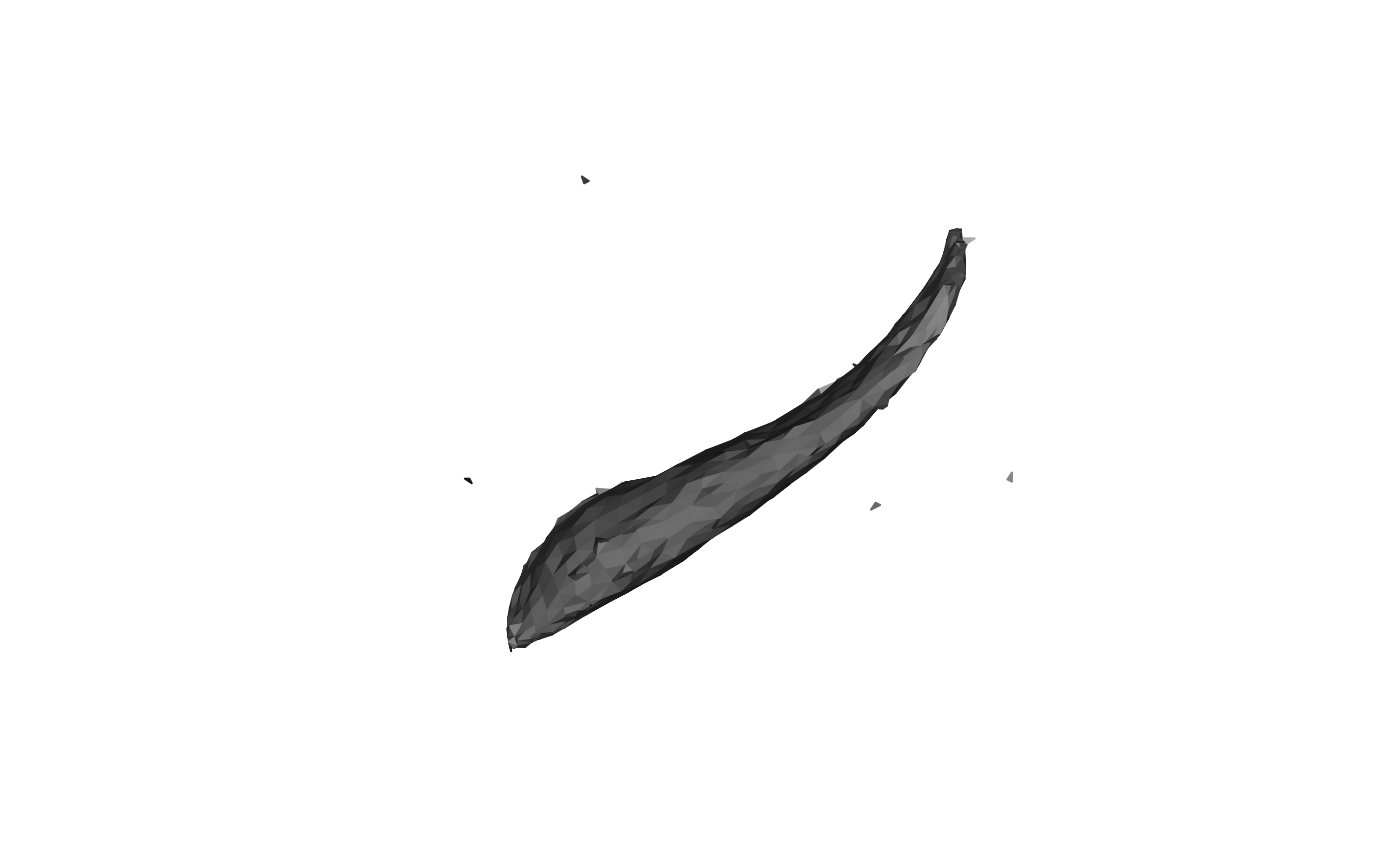

plot(res$pial)


}

#> vcgFixDefects: input nv=9204 nf=15268, boundary edges=470, non-manifold edges=6
#> vcgFixDefects: [1] removed degenerate/duplicate faces -> nv=9204 nf=15268
#> vcgFixDefects: [2] merged 7742 close vertices -> nv=1462 nf=1475
#> vcgFixDefects: [3a] topology/normals ready, starting hole fill (max_hole_size=100)
#> vcgFixDefects: [3b] filled 0 hole(s) -> nv=1462 nf=1475
#> vcgFixDefects: [4] removed unreferenced vertices -> nv=719 nf=1475
#> vcgFixDefects: [5a] topology rebuilt, orienting coherently
#> vcgFixDefects: [5b] oriented=1 orientable=1
#> vcgFixDefects: removed/merged 7742 vertices (tol=1.75), filled 0 hole(s)
#> vcgFixDefects: output nv=719 nf=1475, boundary edges=0, non-manifold edges=88, oriented=yes, orientable=yes, normals_flipped_outward=no
