Cluster electrodes by their canonical CRP response shape

Groups recording electrodes by the shape of their canonical evoked response. Each electrode is summarized by crp into one amplitude-normalized canonical shape; an electrode-by-electrode similarity matrix is factorized with naive_nmf to find clusters that share a response shape, and a representative basis profile curve is extracted per cluster. This applies the basis-profile-curve (BPC) approach across electrodes rather than across stimulation sites; see ‘References’.

Usage

crp_cluster(
  crp_list,
  paired = TRUE,
  time_window = c(0, NA),
  n_clusters = NULL,
  initial_rank = NULL,
  zeta_threshold = 1,
  null_class = TRUE,
  nmf_max_iters = 10000,
  nmf_tol = c(1e-04, 1e-08),
  verbose = TRUE
)

Arguments

crp_list: a named list of ravetools_crp objects (one per electrode) from crp; list names are used as electrode labels. Time axes need not match - the common overlapping domain is used (an error is raised if the domains do not overlap). See ‘Details’.
paired: logical; TRUE (the default) builds the trial-level BPC t-statistic similarity and requires the single trials in .data$V; FALSE uses the cosine similarity of the C_full curves. See ‘Details’.
time_window: numeric c(lo, hi) analysis window, clipped into the common domain; an NA extends to that domain edge. Defaults to c(0, NA) (stimulus onset to the end of the domain).
n_clusters: integer or NULL; if given, fixes the number of clusters and skips the automatic selection (which otherwise uses zeta_threshold).
initial_rank: integer or NULL; the starting NMF rank for automatic selection. NULL uses min(length(crp_list) - 1L, 10L).
zeta_threshold: numeric $> 0$; rank-selection cutoff on $\zeta$ (see ‘Details’); smaller values give fewer clusters. Defaults to 1, matching the BPC reference.
null_class: logical; if TRUE (the default) electrodes whose winner-take-all loading falls below $1/(2\sqrt{N})$ are left unassigned (NA); if FALSE every electrode is forced into a cluster. See ‘Details’.
nmf_max_iters, nmf_tol: passed to naive_nmf.
verbose: logical; whether to report progress.

Value

A named list of class ravetools_crp_cluster:

clusters: Integer vector, the cluster index assigned to each electrode (winner-take-all over the row-normalized NMF loadings). When null_class = TRUE, electrodes whose top loading falls below $1/(2\sqrt{N})$ are left unassigned (NA).
basis_curves: Numeric matrix, time $\times$ number of clusters; column $q$ is the basis profile curve $B_q(t)$ for cluster $q$, the first linear-kernel PCA component of its member C_full curves, sign-oriented to the cluster mean.
basis_times: Numeric vector, the time axis for basis_curves (the common overlapping time axis, restricted to time_window).
similarity: Numeric matrix, the electrode-by-electrode similarity $\Xi$ that was factorized (non-negative, scaled to a maximum of one).
nmf: The naive_nmf result for the selected rank.
n_clusters: Integer, the number of clusters found.
domain: Numeric c(lo, hi), the overlapping time domain shared by all electrodes.
paired,time_window: The settings used; time_window is the effective window after clipping into domain.

Details

Common window. Electrodes may have different time axes (crp drops NA samples); the overlapping time domain is used, time_window is clipped into it, and each electrode is subset on the fly with no interpolation.
Similarity. With paired = TRUE each entry is the one-sample t-statistic, across an electrode pair's common trials, of the per-trial CCEP cross-projection of the $1/\alpha$-rescaled responses; negatives are zeroed, the matrix made symmetric and scaled to a maximum of one. With paired = FALSE it is the cosine cross-projection of the C_full curves.
Rank selection. naive_nmf factorizes the similarity at rank $Q$ (from initial_rank); each rank is re-run a few times and the lowest-error fit kept. $Q$ is reduced while $\zeta$ - the sum of the upper off-diagonal of the row-normalized $HH^\top$ - exceeds zeta_threshold.
Assignment. Each electrode takes its winner-take-all cluster over the normalized NMF loadings; with null_class, loadings below $1/(2\sqrt{N})$ are left unassigned.
Basis curves. Per cluster, the first linear kernel PCA component of its members' C_full curves (as in crp).

References

The BPC method is described in doi:10.1371/journal.pcbi.1008710 ; the underlying CRP method in doi:10.1371/journal.pcbi.1011105 .

Examples

# Four response shapes; shapes 3 and 4 differ only in amplitude, so they
# cluster together once shapes are amplitude-normalized.
# \donttest{
set.seed(1)
n_time <- 300L
tt <- seq(-0.2, 1, length.out = n_time)
shapes <- list(
  exp(-((tt - 0.08) / 0.03)^2) - 0.5 * exp(-((tt - 0.18) / 0.04)^2),
  exp(-((tt - 0.38) / 0.03)^2) - 0.5 * exp(-((tt - 0.50) / 0.04)^2),
  exp(-((tt - 0.70) / 0.04)^2),
  exp(-((tt - 0.70) / 0.04)^2) * 2
)

# 4 electrodes per shape, each parameterized with crp()
crp_list <- list()
for (g in seq_along(shapes)) {
  for (e in seq_len(4L)) {
    V <- outer(shapes[[g]], runif(15L, 0.5, 1.5)) +
      matrix(rnorm(n_time * 15L, sd = 0.15), n_time, 15L)
    crp_list[[sprintf("elec_%d_%d", g, e)]] <-
      crp(V, tt, remove_artifacts = FALSE)
  }
}

res <- crp_cluster(crp_list, verbose = TRUE)
#> rank 10: HH^T off-diagonal sum = 13.514 > 1.00, reducing
#> rank 9: HH^T off-diagonal sum = 10.329 > 1.00, reducing
#> rank 8: HH^T off-diagonal sum = 7.901 > 1.00, reducing
#> rank 7: HH^T off-diagonal sum = 4.859 > 1.00, reducing
#> rank 6: HH^T off-diagonal sum = 2.991 > 1.00, reducing
#> rank 5: HH^T off-diagonal sum = 2.725 > 1.00, reducing
#> selected rank 4 (HH^T off-diagonal sum = 0.674)
res$n_clusters
#> [1] 4
table(res$clusters)
#>
#> 1 2 3 4
#> 4 4 4 4

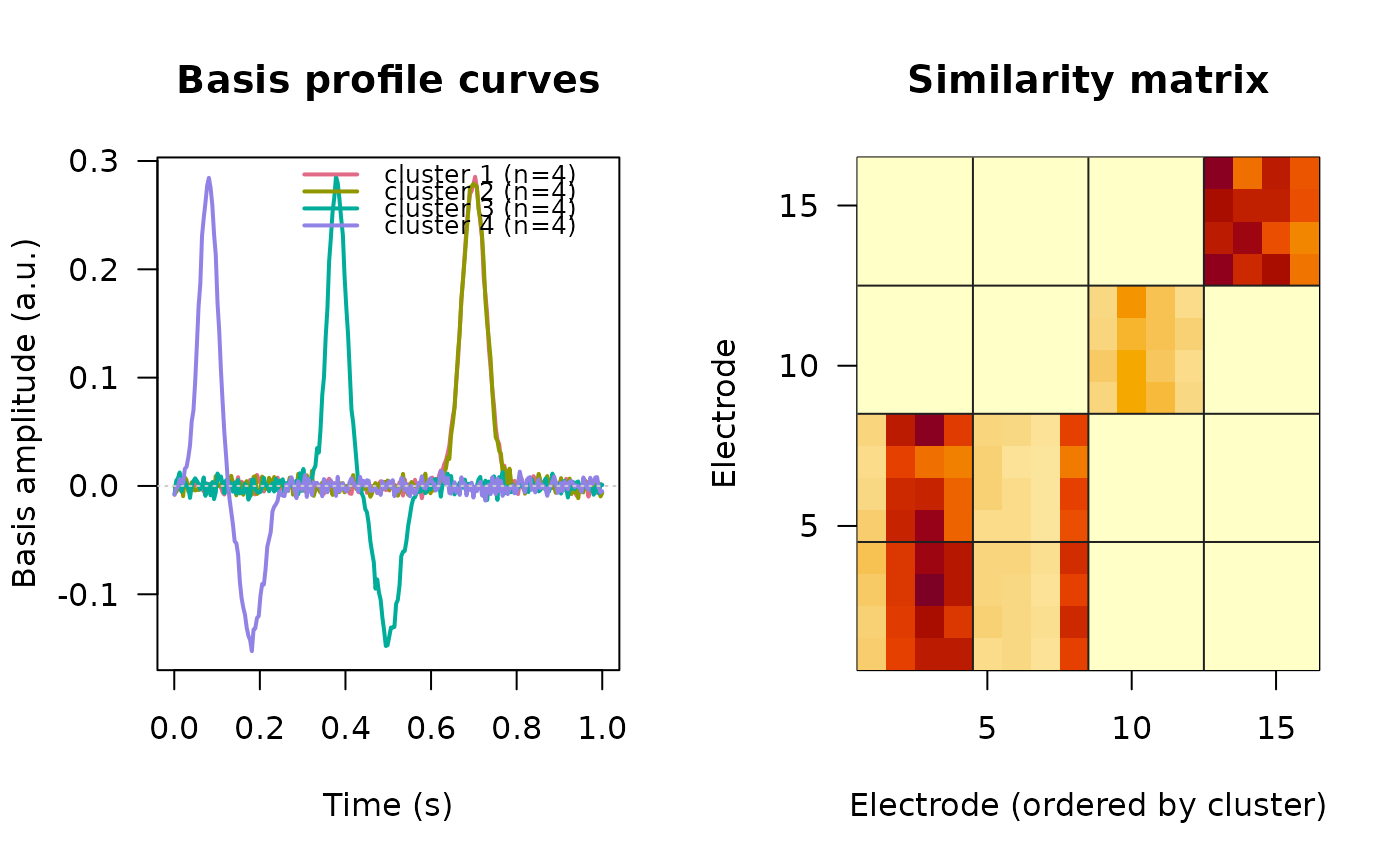

plot(res)

# }
