Read an AFNI/SUMA NIML dataset — niml

Reads a NIML ('.niml.dset') file into a nested tree of elements. All NIML storage forms are supported: plain text, binary.lsbfirst, binary.msbfirst, base64.lsbfirst, and base64.msbfirst; the file may additionally be gzip compressed. All NIML column types are supported, including 'String', 'Line', 'complex', 'rgb', and 'rgba'.

Most users should call read_surface or read_colormap instead, which build surface annotation and color map objects on top of this function.

Usage

niml_find(x, name, recursive = TRUE, groups = FALSE)

io_read_niml(file)

niml_as_surface(file, type = NULL, name = path_ext_remove(basename(file)))

Arguments

x: an 'ieegio_niml' object, or an element node within one
name: name of the data; used when the name cannot be inferred from the data file to set surface data names
recursive: whether to descend into nested ni_group elements; default is true. Use FALSE to restrict the search to the immediate children, for example to select the data element belonging to a dataset itself rather than the one inside its label table
groups: whether to return ni_group elements instead of data elements; default is false
file: path to a NIML file
type: type of the data table, either 'annotations' for discrete data with look-up color table, or 'measurements' for continuous values; set to NULL or 'auto' for automated detection; default is NULL

Value

io_read_niml returns an 'ieegio_niml' object: a list of element nodes. Each node has a name, an attributes character vector, and either children (for ni_group elements) or a value data.frame with one column per ni_type entry and ni_dimen rows. niml_find returns a list of the matching element nodes.

Examples


# Build a small NIML dataset with a nested label table
path <- tempfile(fileext = ".niml.dset")
writeLines(c(
  '<AFNI_dataset dset_type="Node_Label" ni_form="ni_group" >',
  '<SPARSE_DATA ni_type="int" ni_dimen="4" >',
  ' 0 1 2 1',
  '</SPARSE_DATA>',
  '<AFNI_labeltable ni_form="ni_group" >',
  '<SPARSE_DATA ni_type="4*float,int,String" ni_dimen="3" >',
  ' 0 0 0 1 0 "Unknown"',
  ' 1 0 0 1 1 "Left Insula"',
  ' 0 0 1 1 2 "Right Insula"',
  '</SPARSE_DATA>',
  '</AFNI_labeltable>',
  '</AFNI_dataset>'
), path)

x <- io_read_niml(path)
print(x)
#> <ieegio NIML>
#>   + AFNI_dataset [group: 2 element(s)]
#>     - SPARSE_DATA: int [text] 4 x 1
#>     + AFNI_labeltable [group: 1 element(s)]
#>       - SPARSE_DATA: 4*float,int,String [text] 3 x 6

# the data belonging to the dataset itself, not to the label table
dset <- x[[1]]
niml_find(dset, "SPARSE_DATA", recursive = FALSE)[[1]]$value
#>   V1
#> 1  0
#> 2  1
#> 3  2
#> 4  1

unlink(path)

# ---- Read as a surface annotation/measurement --------------

# This example requires extra sample data. Please run
# `ieegio_sample_data("niml/rh.std.141.Glasser_HCP.lbl.niml.dset")`
# to download sample NIML data


has_niml_file <- ieegio_sample_data(
  file = "niml/rh.std.141.Glasser_HCP.lbl.niml.dset",
  test = TRUE
)

if (has_niml_file) {

  niml_file <- ieegio_sample_data(
    file = "niml/rh.std.141.Glasser_HCP.lbl.niml.dset"
  )

  surf_file <- ieegio_sample_data("gifti/std.141.rh.inf_200.gii")

  # Read in surface mesh
  mesh <- read_surface(surf_file)

  # read_surface internally uses `niml_as_surface` for niml.dset
  annot <- niml_as_surface(niml_file)

  merged <- merge(mesh, annot)

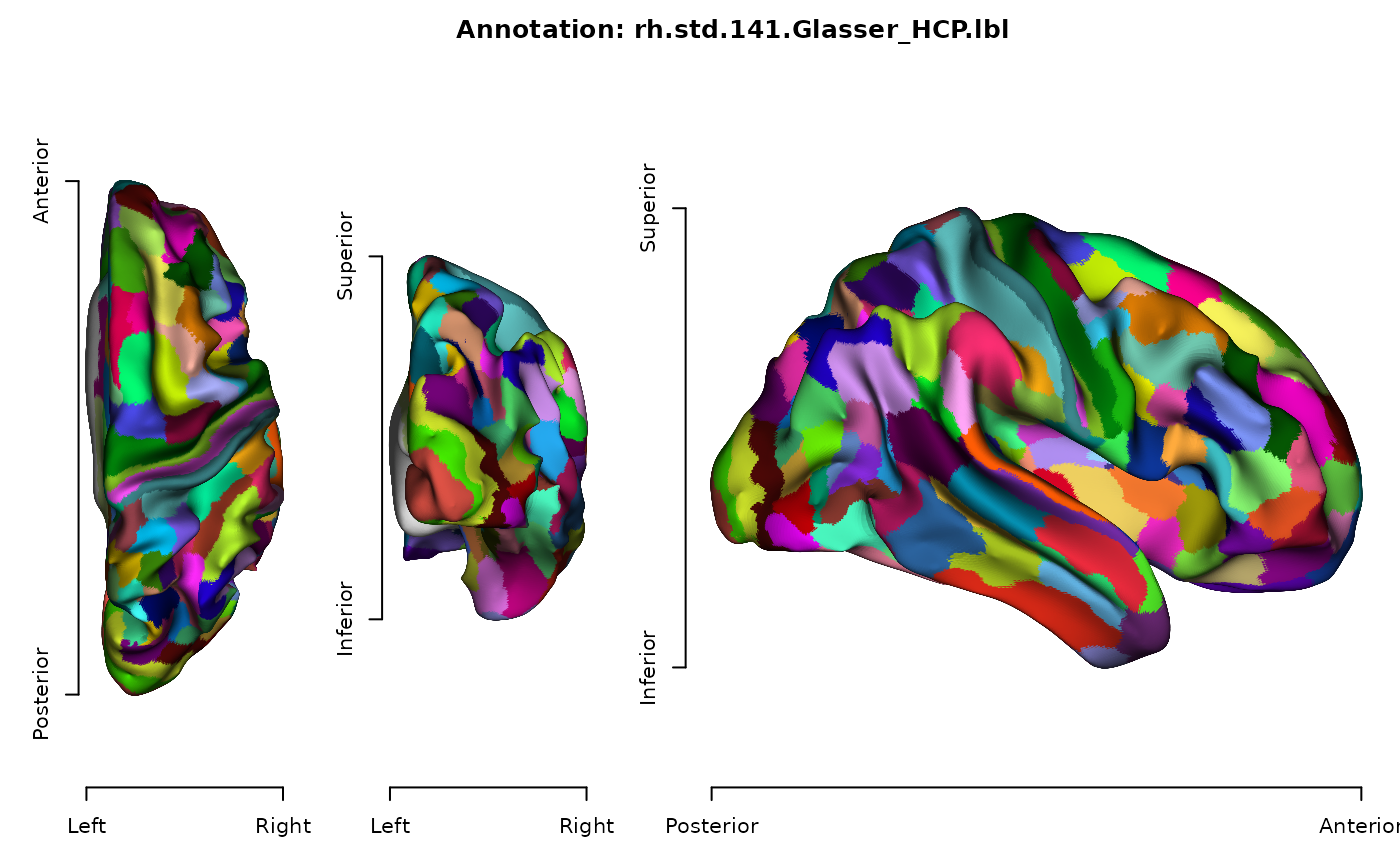

  plot(merged)

}
#> Merging geometry attributes, assuming all the surface objects have the same number of vertices.
