Create plot data from within pipeline make-file — pipeline_plot

Tags an R object so that calling plot on it outside the pipeline can still dispatch the correct S3 method, even though that method is only defined inside the pipeline's shared R scripts.

Usage

pipeline_plot_data(
  x,
  name = substitute(x),
  strip_oldclasses = TRUE,
  pipe_dir = Sys.getenv("RAVE_PIPELINE", "."),
  pipeline_name = NULL
)

Arguments

x: R object to be used as plot data.
name: S3 class name for which plot.<name> is implemented in the pipeline's R/shared*.R files. Must contain only ASCII letters, digits, dots, or underscores. Defaults to the unevaluated expression passed as x.
strip_oldclasses: if TRUE (default) and x already carries a "ravepipeline_plot_data" class from a previous call, the stale plot classes are stripped before re-tagging. Set to FALSE to preserve the full original class vector.
pipe_dir: path to the active pipeline directory. Do not set this when calling from within a pipeline make-file; the default reads the RAVE_PIPELINE environment variable which is set automatically during pipeline_run.
pipeline_name: character string overriding the pipeline name stored in the returned object. When NULL (default) the name is inferred from pipe_dir.

Value

Object x with the class vector c(name, "ravepipeline_plot_data", <original classes>) and two extra attributes: pipeline_name and pipeline_plot_class.

How plotting dispatch works

A RAVE pipeline keeps its plot helpers in files whose names start with shared inside the pipeline's R/ folder (e.g. R/shared-plots.R). Those files are sourced automatically every time the pipeline runs, but they are not available in an ordinary interactive R session.

pipeline_plot_data bridges the two contexts by:

Inserting name and the sentinel class "ravepipeline_plot_data" to the class vector of x.
Attaching the pipeline name as an attribute so the object can be re-associated with its pipeline later.

When plot() is subsequently called:

Inside the pipeline (during pipeline_run): The environment variable RAVE_PIPELINE_ACTIVE is "true", the shared scripts have already been sourced, and plot.<name> is in scope. plot.ravepipeline_plot_data simply calls NextMethod() so dispatch falls through to plot.<name>.
Outside the pipeline (interactive session, report, Shiny app): plot.ravepipeline_plot_data locates the pipeline by pipeline_name, calls $shared_env() to source all R/shared*.R files in an isolated environment, and then evaluates plot(x) inside that environment, where plot.<name> is now available.

Implementing a pipeline plot method

Step 1: define the S3 method in any file whose name starts with shared inside the pipeline's R/ directory (e.g. R/shared-plots.R). The function receives the original object x with its user-defined class prepended, so standard R dispatch applies:


# R/shared-plots.R  (inside the pipeline source tree)
plot.my_pipeline_result <- function(x, ...) {
  graphics::plot(
    x$time, x$signal,
    type = "l",
    xlab = "Time (s)",
    ylab = "Amplitude",
    main = x$title
  )
}

Step 2: wrap the target inside main.Rmd (or any pipeline make-file) by calling pipeline_plot_data with the same name you used for the S3 method:


# main.Rmd  (pipeline make-file target block)
result_plot <- {
  ravepipeline::pipeline_plot_data(
    list(time = seq(0, 1, by = 0.01),
         signal = sin(2 * pi * 10 * seq(0, 1, by = 0.01)),
         title  = "10 Hz sine wave"),
    name = "my_pipeline_result"
  )
}

Step 3: call plot() anywhere:


# Interactive session or report
p <- pipeline("my_pipeline")
result <- p$read("result_plot")
plot(result)   # sources R/shared-plots.R automatically, then calls
               # plot.my_pipeline_result(result)

Examples



# 1.  R/shared-plots.R  -- define the S3 method
plot.toy_example <- function(x, ...) {
  graphics::plot(x$data,
                 xlab = "Index", ylab = "Value",
                 main = x$title %||% "")
}

# 2.  main.Rmd target block -- wrap the data
plot_data <- ravepipeline::pipeline_plot_data(
  list(data = 1:10, title = "Toy example"),
  name = "toy_example",
  pipeline_name = "toy_pipeline"
)

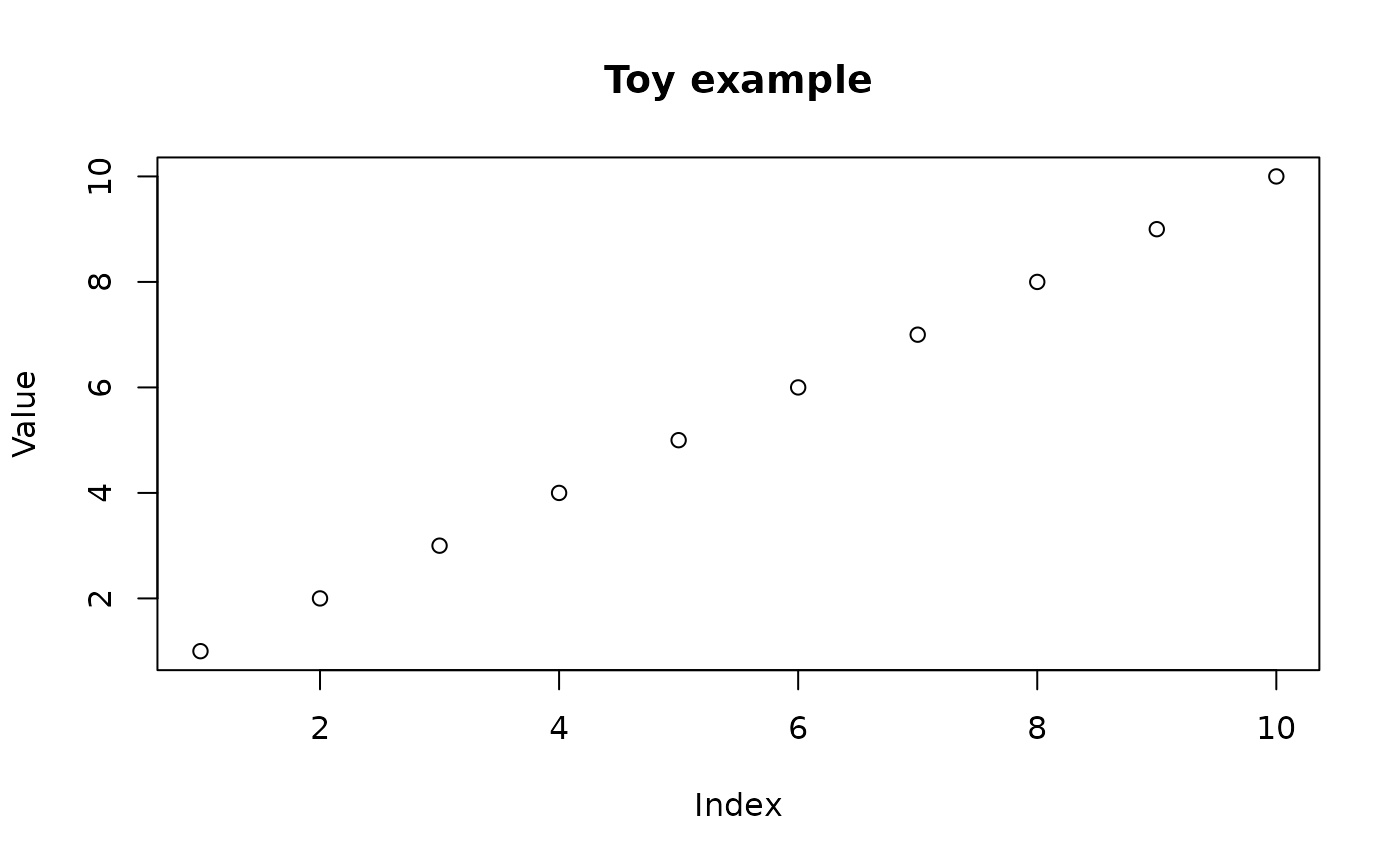

# 3.  Interactive session -- just call plot()
plot(plot_data)  # dispatches to plot.toy_example via shared_env
