Resolve a region of interest into a chosen representation

Applies the criteria recorded by as_ieegio_roi and converts the result into the requested geometry. Where as_ieegio_roi only describes how to derive a region, resolve_roi_as carries that description out and hands back an object that is the region.

Usage

resolve_roi_as(
  x,
  mode = c("auto", "volume", "pointcloud", "streamlines", "surface"),
  ...
)

Arguments

x: a region of interest, or anything as_ieegio_roi accepts; non-ROI inputs are converted first, with no criteria attached
mode: representation to resolve into: "auto" (default, keep the representation the region already has), "volume", "pointcloud", "surface", or "streamlines"
...: tuning arguments for the chosen mode; see 'Details'

Value

The resolved region: an 'ieegio' volume, surface, or streamlines object carrying the "ieegio_roi" class and an "roi_info" attribute whose type reports the representation.

Details

The resolved object is always in world ('RAS') coordinates: geometry transforms are applied to the coordinates and the stored transform is reset to the identity, so two resolved regions can be compared directly. The criteria are cleared from the "roi_info" attribute afterwards, since they have been spent and the data no longer holds the values they described.

Not every pair of representations is convertible. Streamlines carry tract connectivity that nothing else does, so mode = "streamlines" accepts only a streamlines region and fails otherwise. The remaining conversions all succeed, though some lose information: a mesh resolved as a point cloud keeps its vertices and drops its faces.

Arguments in ... depend on mode:

"volume": dim and vox2ras give the target grid explicitly; otherwise one is built along the world axes at resolution spacing (default 0.5) around the region. fill_surface fills the interior of a closed mesh rather than only marking the voxels it passes through, and needs the ravetools package.
"surface": lambda smooths the surface extracted from a point cloud or volume, which also needs ravetools. For streamlines, tube_radius and tube_sides set the thickness and the number of sides of the tube built around each tract.
"pointcloud", "streamlines": no tuning arguments.

A resolved point cloud gains a point_radius entry in its "roi_info", describing the ball to draw around each of its points as min, median, q95, and max. The last three say what radius covers at least half, at least ninety-five percent, and all of the original region; min instead is the radius at which balls on neighboring points begin to overlap. No other representation carries it.

Examples


# ---- A volume becomes the point cloud of its voxel centers -----------
vox2ras <- rbind(cbind(diag(2, 3), c(-10, -10, -10)), c(0, 0, 0, 1))
mask <- array(0, c(10, 10, 10))
mask[3:5, 3:5, 3:5] <- 1

roi <- as_ieegio_roi(mask, vox2ras = vox2ras, threshold_lb = 0.5)

# ROI is a volume, resolved as pointcloud
points <- resolve_roi_as(roi, "pointcloud")
print(points)
#> <ieegio ROI [pointcloud]>
#> <ieegio Surface>
#>   Header class: basic_geometry
#>   Geometry :
#>     # of Vertex     : 27
#>     # of Face index : 0
#>     # of transforms : 0
#>       Transform Targets :
#>
#> Contains: `geometry`
#>

# covering the voxel reaches its corner, not merely half its spacing
point_radius <- attr(points, "roi_info")$point_radius

print(point_radius)
#> $min
#> [1] 1
#>
#> $median
#> [1] 0.984592
#>
#> $q95
#> [1] 1.38056
#>
#> $max
#> [1] 1.732051
#>

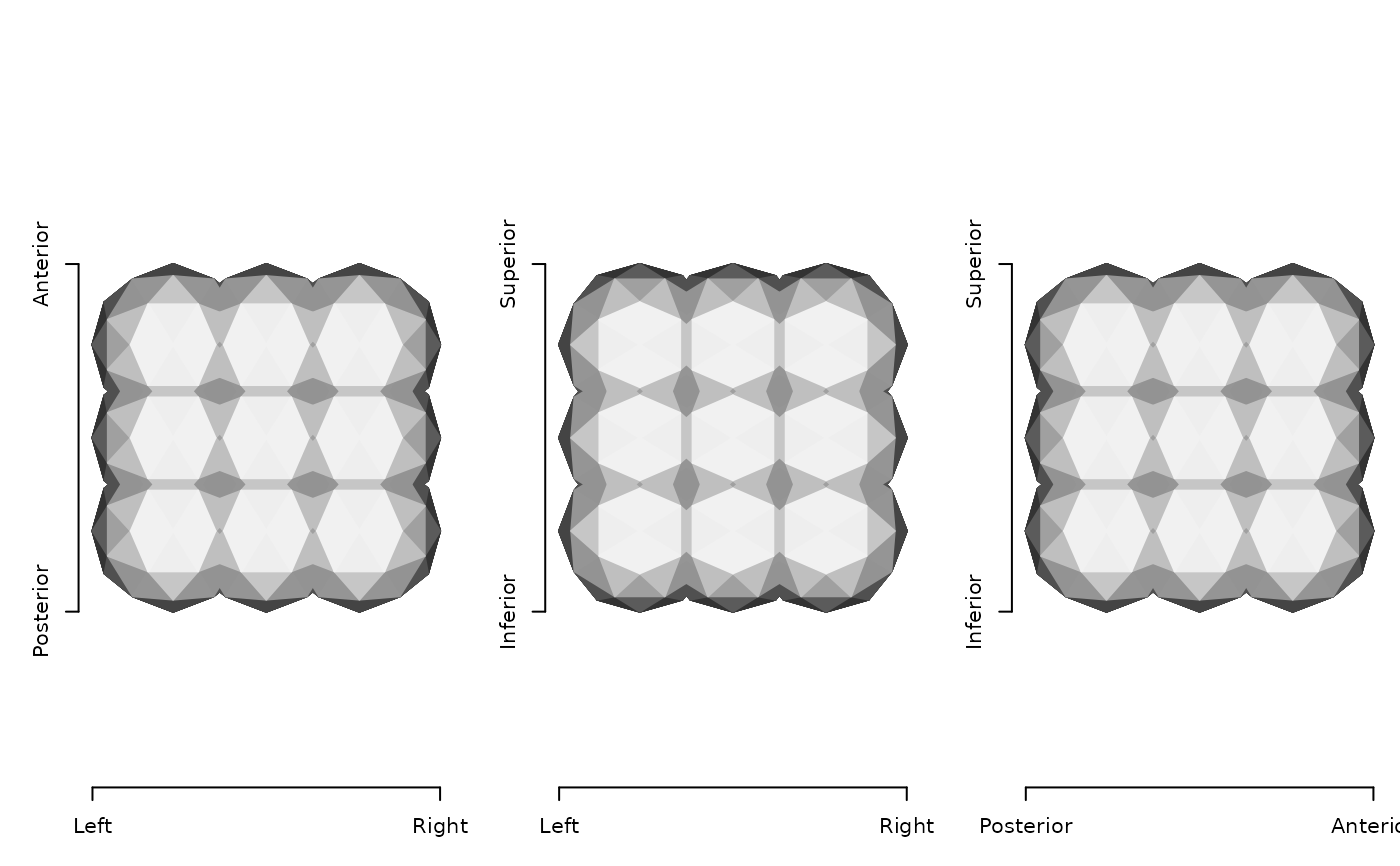

# Plot the point cloud as spheres with radius of `max`, the union of
# the spheres covers the entire mask
plot(points, cex = point_radius$max)


# ---- Points are sampled back onto a voxel grid -----------------------
box <- as.matrix(expand.grid(-3:3, -2:2, 0:4))
volume <- resolve_roi_as(as_ieegio_roi(box), "volume", resolution = 0.5)
dim(volume)
#> [1] 17 13 13
sum(volume[])
#> [1] 175

plot(volume, zoom = 10)


# ---- A tract has no thickness, so it is given a tube body ------------
tract <- cbind(seq(0, 10, by = 0.5), rnorm(21), rnorm(21))
roi <- as_ieegio_roi(tract, type = "streamlines")

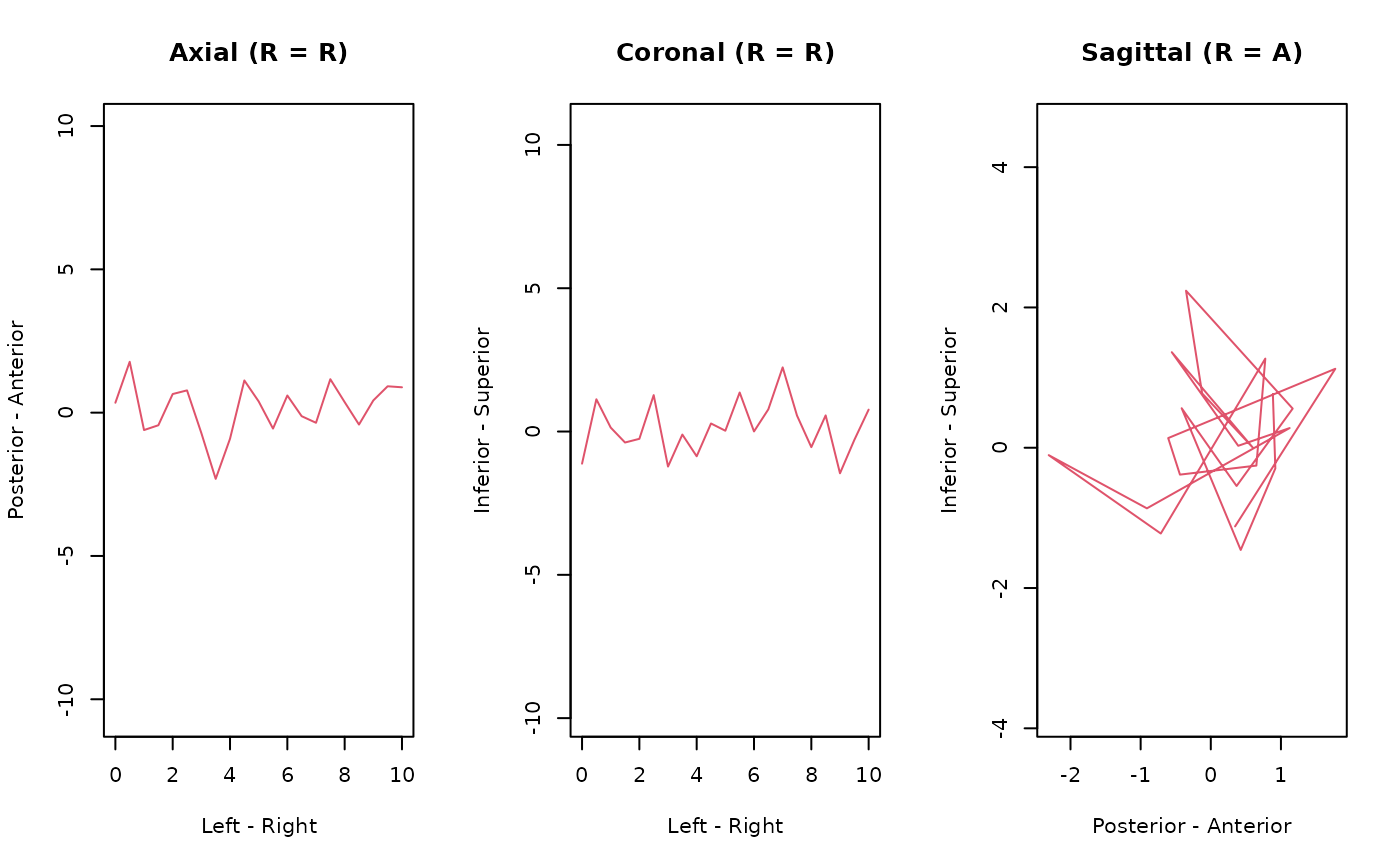

plot(roi)

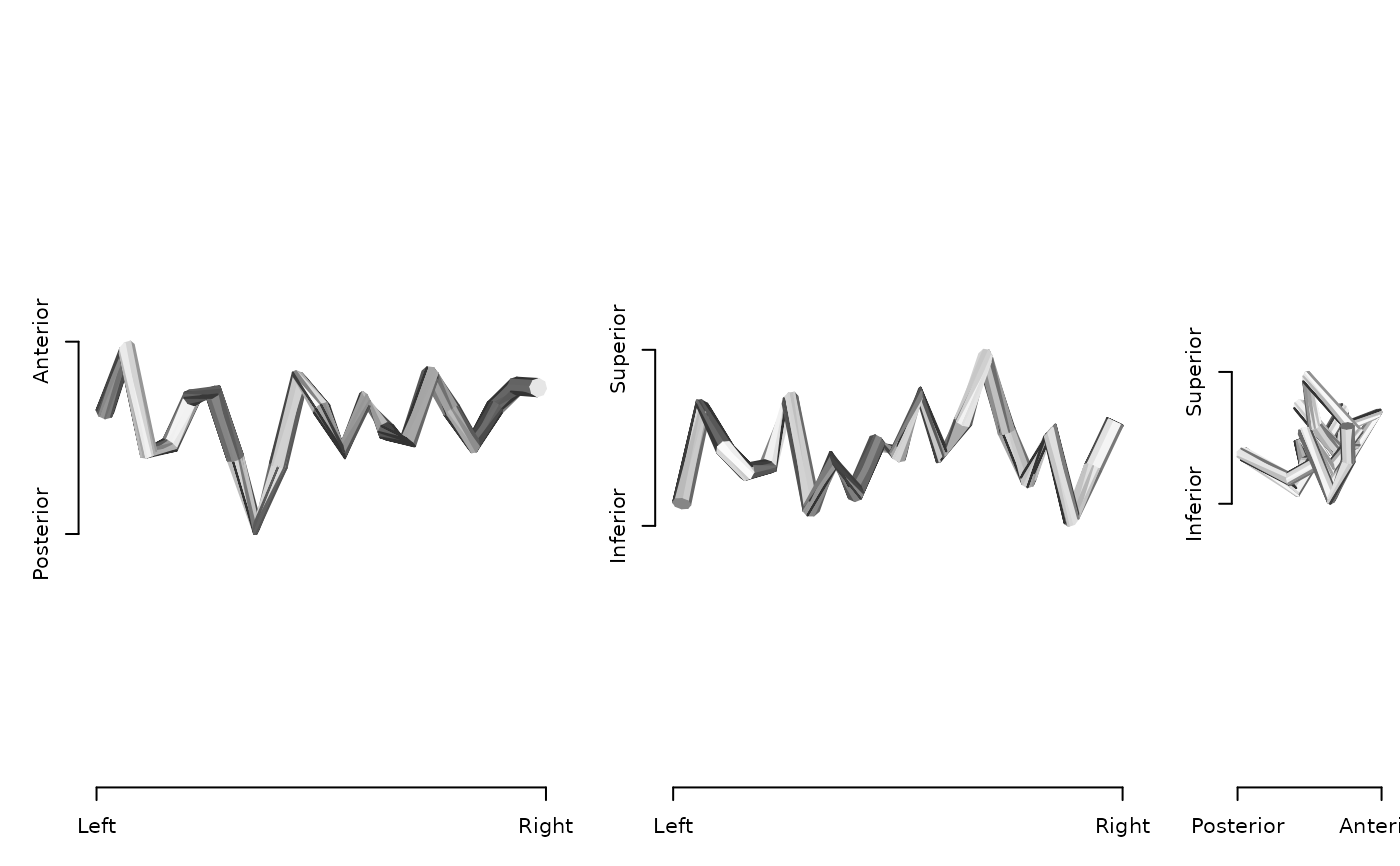

tube <- resolve_roi_as(roi, "surface", tube_radius = 0.2, tube_sides = 8)

plot(tube)


# ---- A threshold expression trims a mesh -----------------------------
vertices <- matrix(
  c(0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1),
  ncol = 3, byrow = TRUE
)
faces <- matrix(
  c(1, 2, 3, 1, 2, 4, 1, 3, 4, 2, 3, 4),
  ncol = 3, byrow = TRUE
)
surface <- as_ieegio_surface(
  vertices,
  faces = faces,
  measurements = data.frame(Curv = c(1, 1, 1, -1))
)
roi <- as_ieegio_roi(surface, threshold_expr = .m1 > 0)

# only the face whose three corners all survive is kept
trimmed <- resolve_roi_as(roi, "surface")
ncol(trimmed$geometry$faces)
#> [1] 1

# `auto` keeps whatever representation the region already has
attr(resolve_roi_as(roi, "auto"), "roi_info")$type
#> [1] "surface"
