Read and write streamlines — imaging-streamlines • ieegio

High-level functions to read and write streamlines, supporting 'TCK', 'TRK', 'TT' (read-only), 'VTK' poly-data (including legacy '.vtk', 'XML'-based '.vtp', 'HDF5'-based '.vtpb')

Usage

read_streamlines(file, ...)

write_streamlines(
  x,
  con,
  format = c("auto", "tck", "trk", "vtk", "vtp", "vtpb"),
  ...
)

as_ieegio_streamlines(x, ...)

# Default S3 method
as_ieegio_streamlines(x, vox2ras = NULL, ..., class = NULL)

# S3 method for class 'character'
as_ieegio_streamlines(x, sanitize = TRUE, ...)

Arguments

file, con: path to the streamline data
...: passed to low-level functions accordingly
x: R object that can be converted into an ieegio streamlines instance
format: format to write to file, the file extensions must match with the format
vox2ras: volume index to 'RAS' coordinate transform matrix; default is identity matrix and used by 'TRK' format
class: additional class to be added to the instance
sanitize: whether to discard the tracts in a file that are not lines; default is TRUE. A tract needs at least two points to have any segment, so points with missing coordinates are dropped, and a tract left with fewer than two points is dropped entirely. Reading a file may therefore return fewer tracts than it stores. Set to FALSE to read the file exactly as written

Value

read_streamlines and as_ieegio_streamlines returns a streamlines instance.

Examples



# toy example
curve <- function(t) {
  x <- sin(4 * t + sample(300, 1) / 100) + t + sample(seq_along(t)) / length(t) / 10
  y <- cos(sin(t) + 5 * t) + sample(seq_along(t)) / length(t) / 10
  z <- t * 3
  cbind(x, y, z)
}

# 10 lines, each line is represented by nx3 matrix
tracts <- lapply(seq(100, 109), function(n) {
  curve(seq_len(n) / 100)
})

# convert to streamline
x <- as_ieegio_streamlines(tracts)

# Display
print(x)
#> <DTI Streamlines>
#>   Total streamlines: 10
#>   Transforms (vox2ras):
#>       [1  0  0  0]
#>       [0  1  0  0]
#>       [0  0  1  0]
#>       [0  0  0  1]
#>   Scalars (none)
#>   Properties (none)
#>

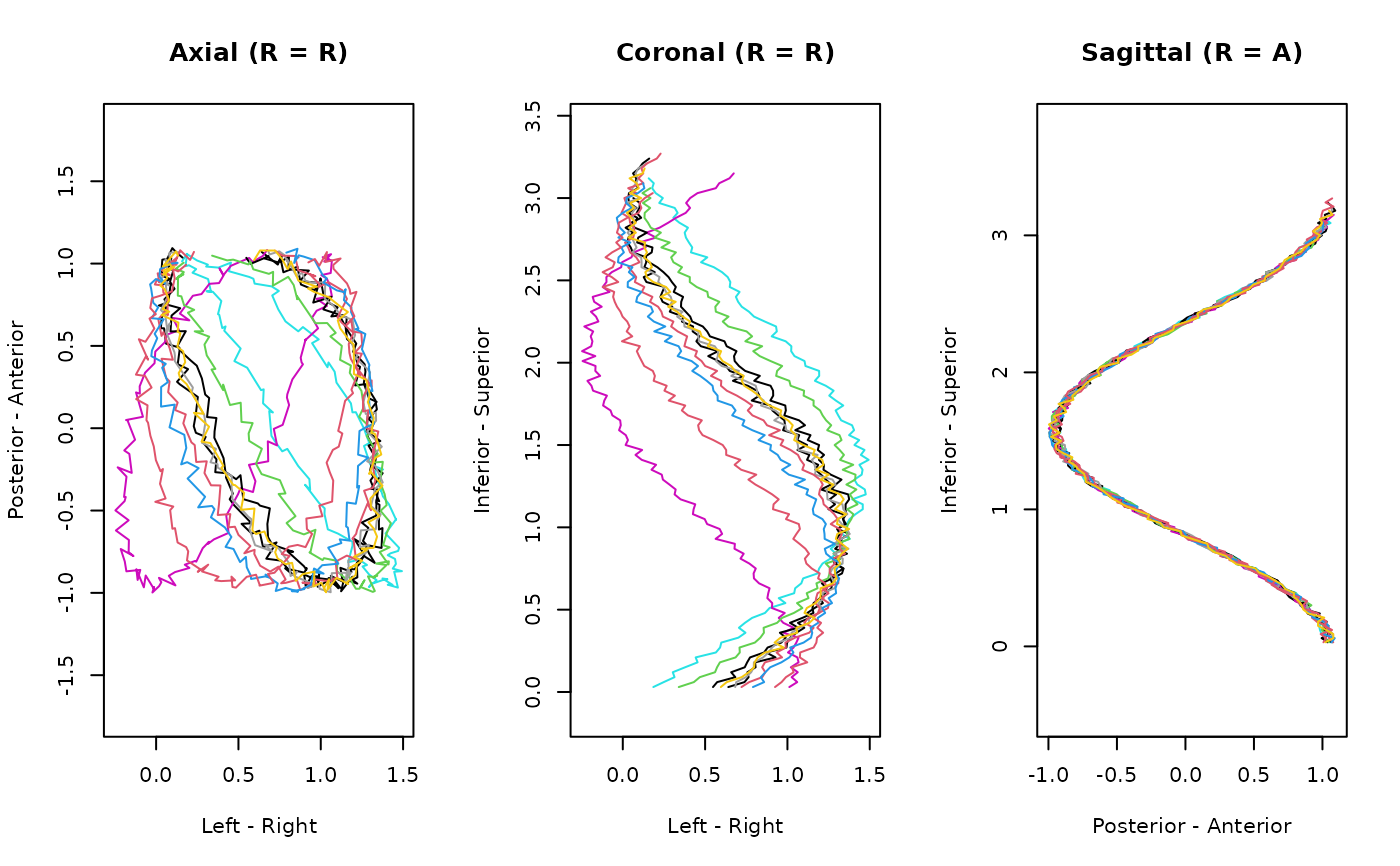

plot(x, col = 1:10)


if(system.file(package = "r3js") != '') {
  plot(x, method = "r3js")
}

# Subset the first line (transformed)
coords <- x[[1]]$coords
head(coords)
#>          [,1]      [,2] [,3]
#> [1,] 1.065450 1.0102005 0.03
#> [2,] 1.024458 0.9948088 0.06
#> [3,] 1.030881 1.0278445 0.09
#> [4,] 1.101710 1.0213405 0.12
#> [5,] 1.079942 1.0203426 0.15
#> [6,] 1.144574 0.9679095 0.18

# Save different formats
tdir <- tempfile()
dir.create(tdir, showWarnings = FALSE, recursive = TRUE)

write_streamlines(x, file.path(tdir, "sample.tck"))
write_streamlines(x, file.path(tdir, "sample.trk"))
write_streamlines(x, file.path(tdir, "sample.trk.gz"))

if (FALSE) { # \dontrun{

  # Require Python
  write_streamlines(x, file.path(tdir, "sample.vtk"))
  write_streamlines(x, file.path(tdir, "sample.vtp"))
  write_streamlines(x, file.path(tdir, "sample.vtpb"))

} # }


# Read formats
y <- read_streamlines(file.path(tdir, "sample.trk"))
#> TRK file is detected. Please read the following text carefully. TRKfile format has ambiguity by definition: if the file is generated fromTrackVis, nibabel, then there is a half-voxel offset, which can becorrected by setting `half_voxel_offset=TRUE`. However, if the file isgenerated from DSI-Studio, then there is no such offset, please set the`half_voxel_offset=FALSE`.
#>
#>   `half_voxel_offset` is unspecified, setting to `TRUE` by default.

# Compare x and y
diffs <- mapply(
  x = as.vector(x),
  y = as.vector(y),
  function(x, y) {
    range(x$coords - y$coords)
  }
)
# Should be floating errors
max(abs(diffs))
#> [1] 1.144409e-07

unlink(tdir, recursive = TRUE)
